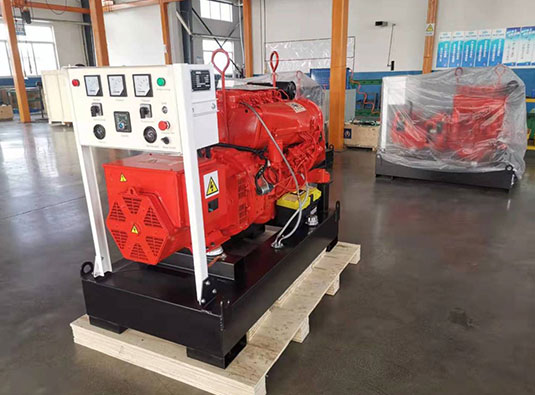

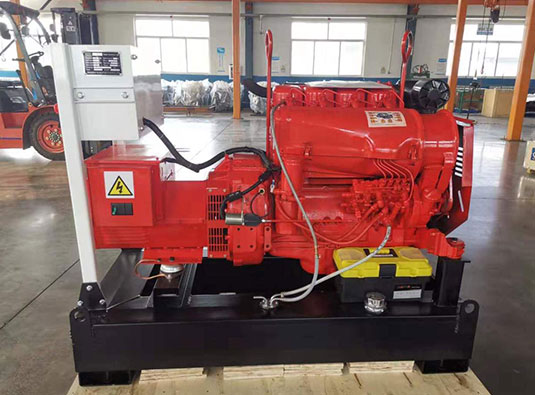

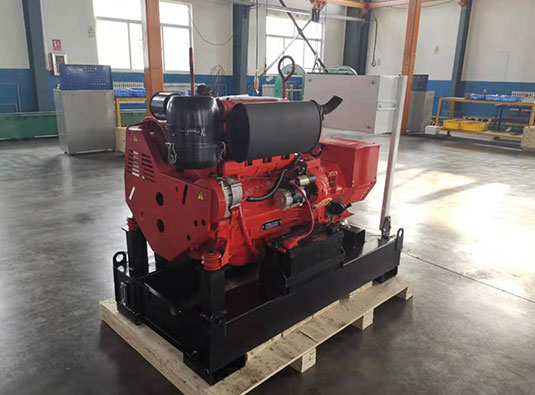

    32kW diesel generator set with Deutz F4L912 engine

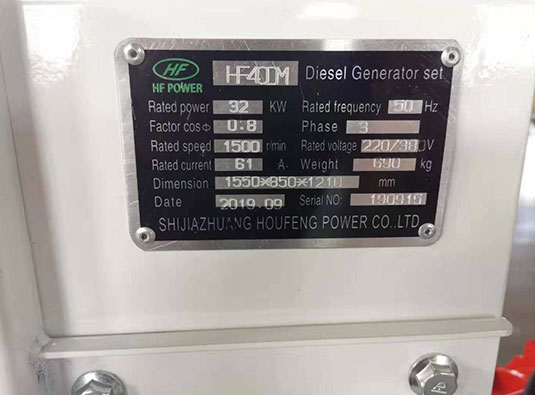

    • Generator set model: HF40D
    • Rated power: 32kW
    • Rated frequency: 50HZ
    • Phase: 220/380V
    • Rated current: 61A
    • Net weight: 690kgs
    share to :
    Product Description:

    We are professional manufacturer of deutz diesel engine and deutz diesel generators.

    air cooled engine deutz models: F2L912, F3L912, F4L912, F4L912T, F6L912, F6L912T, BF6L913, BF6L913C

    Alternator brand : stamford , Leroy Somer, Leroy Some,Marathon .

    Generator set power: 12kw 15kva, 20kw 25kva, 24kw 30kva, 36kw 45kva, 40kw 50kva, 52kw 65kva, 75kw 93.75kva, 100kw 125kva

    Technical Data:

    Model

    HF40D

    Genset



    Prime power(kw/kva) when 50HZ

    32/40

    Engine



    Model

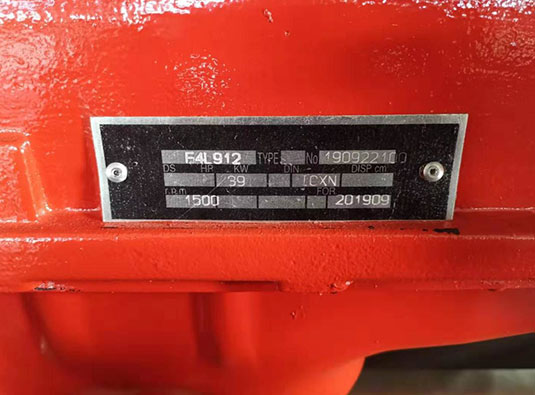

    F4L912

    Prime power

    39KW/1500rpm

    Number of cylinder

    4

    Cylinder arrangement

    vertical line

    Cooling system

    Air cooled

    Aspiration

    Naturally

    Governor

    Mechanical

    Bore*Stroke

    100*120mm

    50% Fuel consumption

    3.9L/hr

    75% Fuel consumption

    5.6L/hr

    100% Fuel consumption

    7.15L/hr

    Alternator



    Excitation type

    Brushless excitation

    Rated current(A)

    61

    Insulative grade

    H

    Protection grade

    IP22

    Voltage

    220/380V

    Tolerance of voltage

    ≤±1%

    Dimension

    1550*850*1210mm

    Weight

    690
