Production specification:
|

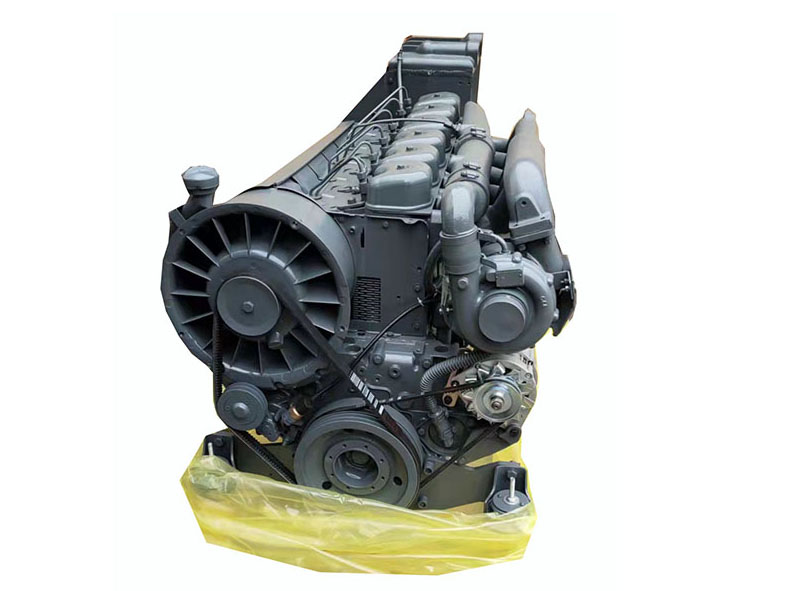

In-line, 6Cylinder, 4 Cycle Diesel Engine |
|
|
Bore×Stroke |
102mm×132mm |
|
Displacement |
6.472Liters |
|
Compression Ration |
18:01 |
|
Cooling Way |
Air cooled |
|
Combustion system |
Direct injection |
|
Inspiration |
Turbocharged |
|
Direction of rotation |
Counterclockwise(face to flywheel end) |
|
Fuel consumption ratio |
206g/kwh(limit value) |
|
Min .Idle speed |
700rpm |
|
Max.Tirque |
960N.m/1600rpm |
|
Net Weight |
510kg |
|
Overall Dimension(L×W×H) |
1035mm×714mm×863mm |
|
Flywheel |
SAE8-11.5 |
Technical Datasheet
|
Usage |
Power class |
Power |
Speed(rpm) |
|||
|
1500 |
1800 |
2300 |
2500 |
|||
|
Construction equipment |
ISO3046/IFN |
P(kW) |
89 |
106 |
112 |
115 |
|
P(HP) |
122 |
145 |
153 |
158 |
||
